A table router is an indispensable tool for both professional craftsmen and DIY enthusiasts who want precise routing, profiling, and joints in wood. With a table router, you can perform everything from simple edges to advanced cuts with high accuracy. The range spans from compact models to powerful machines with advanced features, making it a challenge to find the one that best matches your needs.
In this article, you’ll get an overview of the most important features, types, and considerations that will help you choose the right table router for your workshop.
The article presents a selection of table routers that represent different features, price ranges, and areas of application. The aim is to provide an informative overview of what the market offers, so you can more easily assess which type best suits your projects. The product information is based on publicly available descriptions from manufacturers and retailers and is summarised to provide a clear and neutral overview.
Factors to consider when buying a table router
When choosing a table router, there are several technical and practical factors you should take into account. Here we go through some of the most important ones.
1. Motor power and speed
Motor power greatly affects how efficiently the table router can process different types of wood. For light tasks such as edge routing, a smaller motor may be sufficient, while hard wood and deep cuts require a more powerful machine. An adjustable speed provides flexibility to adapt the speed to the material and router bit.
2. Table size and stability
A solid and flat table is crucial for precision. Larger tables provide better support for the workpiece and make the work safer. If you work with large boards or long pieces, you should choose a model with extension options or a sturdy stand.
3. Adjustment options
Precise height adjustment and the ability to fine-tune the cutting depth are important features, especially for repeated cuts. Some models offer micrometre adjustment, allowing you to work with very small tolerances.
4. Safety and dust collection
A good table router should have a safety switch, protective guard, and effective dust extraction. This improves both the working environment and the machine’s lifespan. Also consider models that can be connected to an external vacuum cleaner for optimal dust control.
5. Accessories and compatibility
Flexibility increases if the table router can use different router bits and accessories. Check whether the machine supports standardised shank diameters and whether there are additional accessories such as parallel guides, guide rails, or template rings that suit your needs.
Products in focus

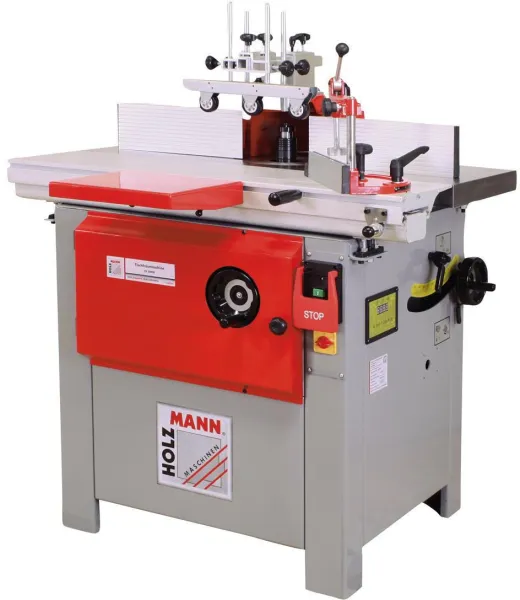

The Holzmann FS200SF is a 400V table router designed for precision work in wood. It combines a solid cast iron table with a smooth aluminium table and a table extension, providing a large and stable work surface.
The machine has four speeds that can be changed via a front door, making it easy to adjust the routing speed for different materials and tools. The spindle can tilt backwards up to 45°, and there is the option for rotation both clockwise and counterclockwise.
A high-quality aluminium fence and hold-down ensure precise control of the workpiece during operation. The speed can be read directly on a digital display, contributing to accurate control.
Delivery includes angle stop, router hood, and hold-down, so the machine can be used immediately for a wide range of routing tasks.
- Solid work surface: Cast iron table combined with smooth aluminium extension for stability and space.
- Variable speed: Four speeds with easy access via front door.
- Adjustable spindle: Can tilt backwards up to 45° for flexible machining.
- Digital readout: Speed displayed on digital display for precise control.
- Quality fence: Aluminium fence and hold-down ensure precise results.
Pros and cons
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Pros and cons
Pros
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Pros
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 1000 x 360 mm
- Table size (aluminium table): 1000 x 250 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 180 mm
- Max. tool diameter below table: 180 mm
- Max. clamping height: 100 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: approx. 260 kg
- Model: FS200SF-400V
- Manufacturer: Holzmann

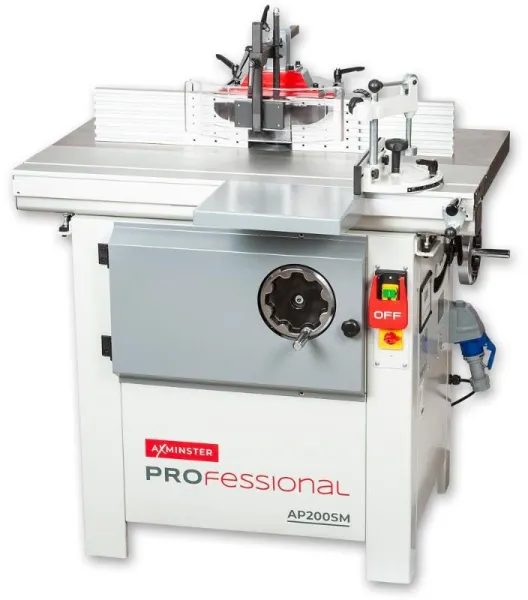

The Axminster Professional AP200SM Table Spindle Moulder 230 is designed for precision woodworking and combines strength, stability and flexibility. The ground cast iron table provides a flat and vibration-free surface, ensuring accurate results during milling.
The machine is powered by a 2.8 kW single-phase motor that delivers ample power for demanding tasks. The user can choose between four spindle speeds from 1,800 to 9,000 revolutions per minute, allowing the speed to be adjusted for different tools and materials. A digital readout shows the current speed for precise control.
The spindle has a diameter of 30 mm and can tilt from +5° to -45°, allowing for advanced milling tasks. A stop setting at 0° makes it easy to return to the vertical position. The machine is equipped with two 100 mm extraction ports – one at the spindle hood and one in the stand – for efficient removal of chips and dust.
As standard, the AP200SM comes with a sliding table with mitre fence and clamping device, supporting precision work. Additional accessories such as a frame table and tenoning plate can be purchased for greater flexibility when machining larger workpieces.
The machine requires a 16 amp power supply and is recommended for use with a C-type circuit breaker. It is suitable for both professional workshops and experienced users who want a stable and versatile spindle moulder.
- Powerful motor: 2.8 kW single-phase motor delivers high performance for demanding tasks.
- Four speeds: Adjustable spindle speeds from 1,800 to 9,000 rpm with digital display.
- Tilting function: The spindle can be adjusted from +5° to -45° for flexible milling.
- Efficient extraction: Two 100 mm extraction ports keep the work area clean.
- Solid construction: Ground cast iron table ensures stability and precision.
- Included sliding table: Includes mitre fence and clamping device for precision work.
Pros and cons
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
Cons
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
Cons
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Specifications
- Model: AP200SM
- Item number (SKU): AX107703
- Voltage: 230 V
- Power: 2.8 kW
- Spindle diameter: 30 mm
- Spindle speeds: 1,800, 3,000, 6,000 and 9,000 rpm
- Spindle tilt: +5° to -45°
- Spindle travel: 100 mm
- Max spindle projection above table: 100 mm
- Max tool diameter above table: 200 mm
- Max tool diameter below table: 180 mm
- Extraction ports: 2 x 100 mm
- Required extraction air volume: 1,000 m³/hour
- Table size: 1,000 mm x 360 mm
- Table height: 900 mm
- Dimensions (L x W x H): 1,010 x 690 x 900 mm
- Weight: 218 kg
- Sound pressure level: 77.1 dB(A)
- Plug type: UK 16A plug with 3 pins
- User level: Retail/professional use

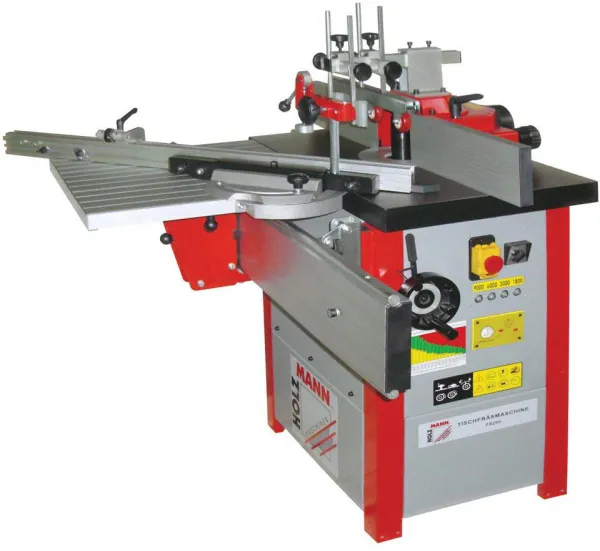

The Holzmann FS200 is a table router designed for precise and stable routing of wooden workpieces. The machine is equipped with a solid cast iron table, which ensures vibration-free operation and precise results during work.
The router fence is of high quality and features both a hold-down system and fine adjustment, making it possible to work safely and with great precision. The electronic LED speed display provides a clear overview of the spindle speed.
The machine offers four standard speeds, allowing the user to adapt the routing to different materials and tool sizes. The spindle height is easily adjusted via a handwheel, and accessories such as a router hood, aluminium fence, hold-down and sanding setup are included.
The FS200 can also be expanded with a roller table as an optional accessory, increasing flexibility when processing larger workpieces.
- Cast iron table: Provides stability and reduces vibrations during work.
- LED speed display: Clearly shows the current spindle speed.
- Four speeds: Allows adaptation to different routing tasks.
- Precise router fence: With hold-down system and fine adjustment for accurate results.
- Expansion option: Roller table can be purchased and retrofitted.
Pros and cons
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros and cons
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Specifications
- Model: FS200-400V
- Motor power (S1/S6): 2800 W / 3750 W
- Voltage: 400 V
- Table size: 690 × 480 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. milling diameter: 200 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 × 120 mm
- Weight: 155 kg

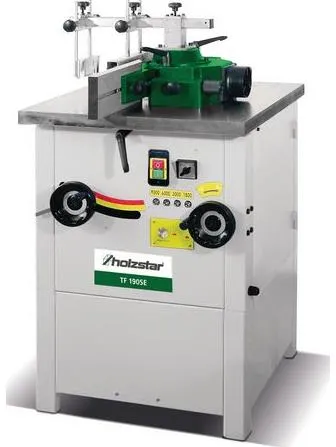

The Holzstar TF 190SE is a stationary table router designed for precise milling work in wood. It is equipped with a massive grey cast iron table that provides a stable and vibration-free work surface, contributing to precise results.
The machine has a milling unit made of grey cast iron that can tilt from +5° to -30°, providing flexibility for different milling tasks. The milling spindle can rotate both clockwise and counterclockwise, and the speed is easily adjusted via belt change. The current speed is clearly displayed with LED light on the front.
A hold-down device helps to guide the workpiece safely during operation, and a sliding table and chassis device can be purchased as optional accessories. The combination of a powerful motor and solid construction makes the machine suitable for both professional and demanding hobby users.
- Solid construction: Cast iron table and milling unit ensure stability and precision.
- Adjustable milling unit: Can tilt from +5° to -30° for flexible machining.
- LED speed display: Provides clear information about the selected speed.
- Powerful motor: 2.2 kW drive motor with four speeds up to 9000 revolutions per minute.
- Hold-down device: Provides safe and precise control of the workpiece during milling.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive motor power: 2.2 kW
- Absorbed power: 2.8 kW
- Milling speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt shift
- Speed display: LED on the front of the machine
- Milling unit angle range: -5° to +30°
- Milling spindle length: 100 mm
- Max. tool diameter retractable: 200 mm
- Arbor diameter: 30 mm
- Extraction port diameter: 100 mm
- Work table (L×W): 710 × 640 mm
- Table height: 900 mm
- Sliding carriage length: 1200 mm
- Sliding carriage width: 700 mm
- Sliding carriage height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: approx. 174 kg
- Item number (SKU): SM-5901933

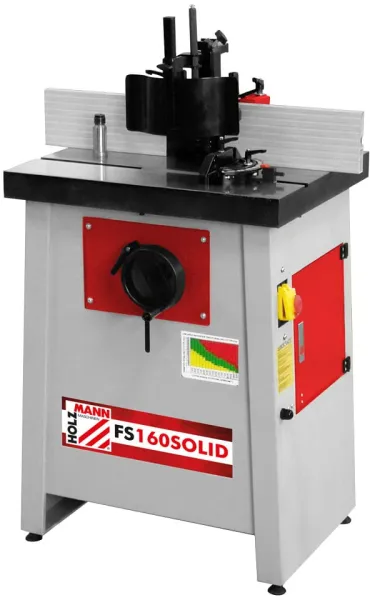

The Holzmann FS160 Solid 230V is a stationary table router constructed from cast iron, providing high stability during operation. The fixed and stable stand ensures that the machine remains steady, even during demanding routing tasks.
The machine is equipped with a 2200 W motor powered by 230 V electricity, delivering sufficient power for both fine and heavy routing tasks. The dynamically balanced spindle contributes to precise cuts and reduces vibrations during use.
The table measures 620 x 510 mm and has a working height of 860 mm, providing an ergonomic working position. The router spindle has a diameter of 30 mm and can operate at four different speeds – 1400, 4000, 6000, and 9000 revolutions per minute – allowing the user to adjust the speed according to the material and task.
The machine has a 100 mm extraction port, allowing connection to dust extraction for a cleaner working environment. The maximum clamping height is 105 mm, and the table opening is 160 mm, providing space for various tool sizes. The total weight of 126 kg underscores the machine’s solid construction.
- Powerful motor: 2200 W motor provides high performance for demanding routing tasks.
- Stable construction: Cast iron table and solid stand ensure vibration-free operation.
- Variable speed: Four spindle speeds (1400–9000 rpm) adapted to different materials.
- Ergonomic working height: Table height of 860 mm provides a good working position.
- Efficient extraction: 100 mm extraction port for connection to dust extraction.
Pros and cons
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Specifications
- Motor power: 2200 W
- Voltage: 230 V
- Table size: 620 × 510 mm
- Table height: 860 mm
- Extraction port: 100 mm
- Router spindle diameter: 30 mm
- Router spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Maximum clamping height: 105 mm
- Table opening: 160 mm
- Maximum tool diameter under table: 150 mm
- Sound level: 103 dB(A)
- Sound pressure: 89.5 dB(A)
- Weight: 126 kg
- Item number (SKU): FS160SOLID-230V
The Holzmann FS200 is a table router designed for precision work in wood. The machine is equipped with a solid cast iron table that provides stability during operation, and an aluminium router fence with fine adjustment that ensures accurate results.
The router has four standard speeds and an electronic LED display that shows the current spindle speed. This makes it easier to adjust the speed for different materials and routing tasks.
The spindle can be adjusted with a handwheel, and the machine comes with a sanding drum, router hood and aluminium fence. A sliding table can be purchased as an optional accessory and retrofitted as needed.
The FS200 is designed for users who want a combination of power, precision and flexibility in a compact table router for the workshop.
- Cast iron table: Provides high stability and reduces vibrations during operation.
- LED speed display: Accurately shows the spindle speed.
- Four speeds: Allows adjustment for different routing tasks.
- Fine-adjustable aluminium fence: Ensures precise cuts and consistent results.
- Included equipment: Comes with sanding drum, router hood and aluminium fence.
Pros and cons
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Pros and cons
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 230 V
- Table size: 690 x 480 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle: 100 mm
- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 155 kg
- Model: FS200-230V
- Manufacturer: Holzmann
The Holzstar TF 190SE is a table router constructed in grey cast iron, providing a stable and vibration-free work surface. The large milling unit can be tilted from +5° to -30°, allowing for bevelled and complex milling tasks with high accuracy.
The machine is equipped with a powerful 2.2 kW motor, and the speed can easily be changed via a multi-V-belt system. The current speed is clearly displayed with LED lights on the front of the machine, giving the user a good overview during operation.
The milling stops are made of aluminium and can be finely adjusted for precise control of the workpiece. A hold-down device ensures stable guidance, and a sliding table and chassis device can be purchased as optional accessories for additional flexibility.
With a work surface of 710 × 640 mm and a weight of 174 kg, the TF 190SE is designed to stand solidly during operation. It combines power, precision and user-friendliness in a machine suitable for both professionals and advanced hobby users.
- Solid construction: Table and milling unit in grey cast iron for high stability.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible processing.
- Easy speed change: Multi-V-belt system with LED speed display.
- Precision control: Finely adjustable aluminium stops and hold-down device.
- Large work surface: 710 × 640 mm table provides ample space for larger workpieces.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
Cons
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
Cons
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive motor power: 2.2 kW
- Absorbed power: 2.8 kW
- Milling unit angle: -5° to +30°
- Milling spindle length: 100 mm
- Milling spindle stroke: 100 mm
- Max. tool diameter retractable: 200 mm
- Arbor diameter: 30 mm
- Speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt
- Speed display: LED on the front of the machine
- Extraction opening: 100 mm
- Work table: 710 × 640 mm
- Table height: 900 mm
- Sliding carriage length: 1200 mm
- Sliding carriage width: 700 mm
- Sliding carriage height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: 174 kg
- VPE: 1 pc
The Holzstar TF 190E / 400V is a powerful table router designed for stationary use in workshops where precision and reliability are required. It is typically used for milling profiles, grooves, and edges in wooden workpieces.
The machine is powered by a 400V motor, providing stable and efficient power transmission suitable for long-term work and machining of harder wood types. The construction is robust and ensures minimal vibration during use.
The table router is part of Holzstar's machine programme, known for solid workshop equipment for both professionals and serious hobbyists. The TF 190E model is developed with a focus on precision and user-friendliness in daily operation.
- 400V motor: Provides high and stable performance for demanding milling tasks.
- Stationary construction: Ensures precision and stability during work.
- Suitable for woodworking: Designed for milling profiles, grooves, and edges.
- Robust construction: Reduces vibrations and increases accuracy.
Pros and cons
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Pros and cons
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Specifications
- Manufacturer: Holzstar
- Model: TF 190E
- Power supply: 400V
- Product type: Table router
- SKU: SM-5901923
Product descriptions
The Holzmann FS200SF is a 400V table router designed for precision work in wood. It combines a solid cast iron table with a smooth aluminium table and a table extension, providing a large and stable work surface.
The machine has four speeds that can be changed via a front door, making it easy to adjust the routing speed for different materials and tools. The spindle can tilt backwards up to 45°, and there is the option for rotation both clockwise and counterclockwise.
A high-quality aluminium fence and hold-down ensure precise control of the workpiece during operation. The speed can be read directly on a digital display, contributing to accurate control.
Delivery includes angle stop, router hood, and hold-down, so the machine can be used immediately for a wide range of routing tasks.
- Solid work surface: Cast iron table combined with smooth aluminium extension for stability and space.
- Variable speed: Four speeds with easy access via front door.
- Adjustable spindle: Can tilt backwards up to 45° for flexible machining.
- Digital readout: Speed displayed on digital display for precise control.
- Quality fence: Aluminium fence and hold-down ensure precise results.
Pros and cons
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Pros and cons
Pros
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Pros
- Powerful motor up to 3750 W (S6)
- Large and stable work surface in cast iron and aluminium
- Four speeds adapted to different routing tasks
- Option for spindle tilting up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard home installations
- The machine’s weight of around 260 kg makes it less mobile
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 1000 x 360 mm
- Table size (aluminium table): 1000 x 250 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 180 mm
- Max. tool diameter below table: 180 mm
- Max. clamping height: 100 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: approx. 260 kg
- Model: FS200SF-400V
- Manufacturer: Holzmann
The Axminster Professional AP200SM Table Spindle Moulder 230 is designed for precision woodworking and combines strength, stability and flexibility. The ground cast iron table provides a flat and vibration-free surface, ensuring accurate results during milling.
The machine is powered by a 2.8 kW single-phase motor that delivers ample power for demanding tasks. The user can choose between four spindle speeds from 1,800 to 9,000 revolutions per minute, allowing the speed to be adjusted for different tools and materials. A digital readout shows the current speed for precise control.
The spindle has a diameter of 30 mm and can tilt from +5° to -45°, allowing for advanced milling tasks. A stop setting at 0° makes it easy to return to the vertical position. The machine is equipped with two 100 mm extraction ports – one at the spindle hood and one in the stand – for efficient removal of chips and dust.
As standard, the AP200SM comes with a sliding table with mitre fence and clamping device, supporting precision work. Additional accessories such as a frame table and tenoning plate can be purchased for greater flexibility when machining larger workpieces.
The machine requires a 16 amp power supply and is recommended for use with a C-type circuit breaker. It is suitable for both professional workshops and experienced users who want a stable and versatile spindle moulder.
- Powerful motor: 2.8 kW single-phase motor delivers high performance for demanding tasks.
- Four speeds: Adjustable spindle speeds from 1,800 to 9,000 rpm with digital display.
- Tilting function: The spindle can be adjusted from +5° to -45° for flexible milling.
- Efficient extraction: Two 100 mm extraction ports keep the work area clean.
- Solid construction: Ground cast iron table ensures stability and precision.
- Included sliding table: Includes mitre fence and clamping device for precision work.
Pros and cons
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
Cons
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital readout
- Tilting function for flexible milling
- Efficient dust and chip removal via dual extraction ports
- Suitable for professional and advanced use
Cons
- Requires 16A power supply and proper electrical installation
- Relatively heavy machine at over 200 kg, limiting mobility
- Accessories such as frame table and tenoning plate must be purchased separately
Specifications
- Model: AP200SM
- Item number (SKU): AX107703
- Voltage: 230 V
- Power: 2.8 kW
- Spindle diameter: 30 mm
- Spindle speeds: 1,800, 3,000, 6,000 and 9,000 rpm
- Spindle tilt: +5° to -45°
- Spindle travel: 100 mm
- Max spindle projection above table: 100 mm
- Max tool diameter above table: 200 mm
- Max tool diameter below table: 180 mm
- Extraction ports: 2 x 100 mm
- Required extraction air volume: 1,000 m³/hour
- Table size: 1,000 mm x 360 mm
- Table height: 900 mm
- Dimensions (L x W x H): 1,010 x 690 x 900 mm
- Weight: 218 kg
- Sound pressure level: 77.1 dB(A)
- Plug type: UK 16A plug with 3 pins
- User level: Retail/professional use

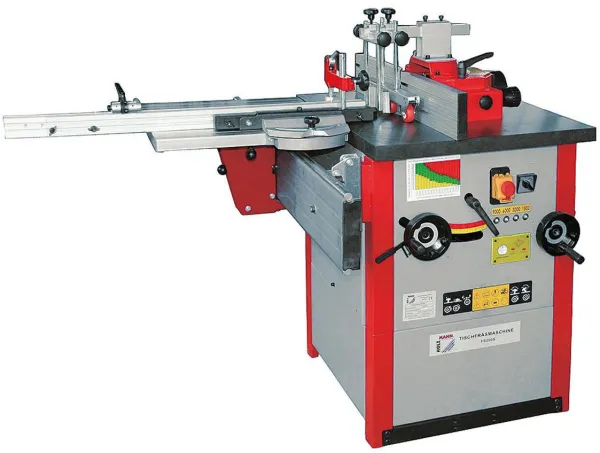

The Holzmann FS200 is a table router designed for precise and stable routing of wooden workpieces. The machine is equipped with a solid cast iron table, which ensures vibration-free operation and precise results during work.
The router fence is of high quality and features both a hold-down system and fine adjustment, making it possible to work safely and with great precision. The electronic LED speed display provides a clear overview of the spindle speed.
The machine offers four standard speeds, allowing the user to adapt the routing to different materials and tool sizes. The spindle height is easily adjusted via a handwheel, and accessories such as a router hood, aluminium fence, hold-down and sanding setup are included.
The FS200 can also be expanded with a roller table as an optional accessory, increasing flexibility when processing larger workpieces.
- Cast iron table: Provides stability and reduces vibrations during work.
- LED speed display: Clearly shows the current spindle speed.
- Four speeds: Allows adaptation to different routing tasks.
- Precise router fence: With hold-down system and fine adjustment for accurate results.
- Expansion option: Roller table can be purchased and retrofitted.
Pros and cons
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros and cons
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed settings
- Precise and adjustable fence
- Option for expansion with roller table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Specifications
- Model: FS200-400V
- Motor power (S1/S6): 2800 W / 3750 W
- Voltage: 400 V
- Table size: 690 × 480 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. milling diameter: 200 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 × 120 mm
- Weight: 155 kg
The Holzstar TF 190SE is a stationary table router designed for precise milling work in wood. It is equipped with a massive grey cast iron table that provides a stable and vibration-free work surface, contributing to precise results.
The machine has a milling unit made of grey cast iron that can tilt from +5° to -30°, providing flexibility for different milling tasks. The milling spindle can rotate both clockwise and counterclockwise, and the speed is easily adjusted via belt change. The current speed is clearly displayed with LED light on the front.
A hold-down device helps to guide the workpiece safely during operation, and a sliding table and chassis device can be purchased as optional accessories. The combination of a powerful motor and solid construction makes the machine suitable for both professional and demanding hobby users.
- Solid construction: Cast iron table and milling unit ensure stability and precision.
- Adjustable milling unit: Can tilt from +5° to -30° for flexible machining.
- LED speed display: Provides clear information about the selected speed.
- Powerful motor: 2.2 kW drive motor with four speeds up to 9000 revolutions per minute.
- Hold-down device: Provides safe and precise control of the workpiece during milling.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt shift
- LED speed display on the front
- Option for accessories such as sliding table and chassis device
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed position in the workshop
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive motor power: 2.2 kW
- Absorbed power: 2.8 kW
- Milling speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt shift
- Speed display: LED on the front of the machine
- Milling unit angle range: -5° to +30°
- Milling spindle length: 100 mm
- Max. tool diameter retractable: 200 mm
- Arbor diameter: 30 mm
- Extraction port diameter: 100 mm
- Work table (L×W): 710 × 640 mm
- Table height: 900 mm
- Sliding carriage length: 1200 mm
- Sliding carriage width: 700 mm
- Sliding carriage height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: approx. 174 kg
- Item number (SKU): SM-5901933

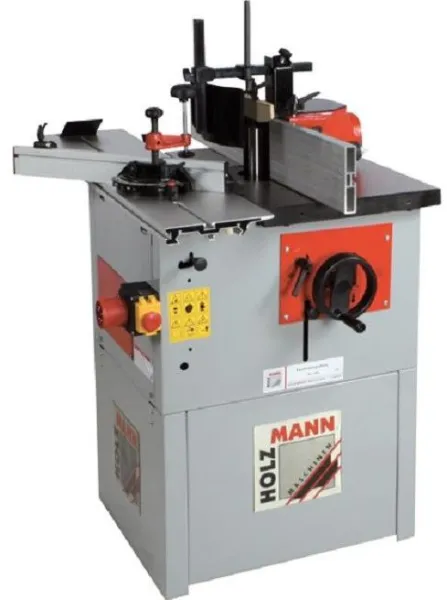

The Holzmann FS160 Solid 230V is a stationary table router constructed from cast iron, providing high stability during operation. The fixed and stable stand ensures that the machine remains steady, even during demanding routing tasks.
The machine is equipped with a 2200 W motor powered by 230 V electricity, delivering sufficient power for both fine and heavy routing tasks. The dynamically balanced spindle contributes to precise cuts and reduces vibrations during use.
The table measures 620 x 510 mm and has a working height of 860 mm, providing an ergonomic working position. The router spindle has a diameter of 30 mm and can operate at four different speeds – 1400, 4000, 6000, and 9000 revolutions per minute – allowing the user to adjust the speed according to the material and task.
The machine has a 100 mm extraction port, allowing connection to dust extraction for a cleaner working environment. The maximum clamping height is 105 mm, and the table opening is 160 mm, providing space for various tool sizes. The total weight of 126 kg underscores the machine’s solid construction.
- Powerful motor: 2200 W motor provides high performance for demanding routing tasks.
- Stable construction: Cast iron table and solid stand ensure vibration-free operation.
- Variable speed: Four spindle speeds (1400–9000 rpm) adapted to different materials.
- Ergonomic working height: Table height of 860 mm provides a good working position.
- Efficient extraction: 100 mm extraction port for connection to dust extraction.
Pros and cons
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option for dust extraction connection
- Suitable for both small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal use
Specifications
- Motor power: 2200 W
- Voltage: 230 V
- Table size: 620 × 510 mm
- Table height: 860 mm
- Extraction port: 100 mm
- Router spindle diameter: 30 mm
- Router spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Maximum clamping height: 105 mm
- Table opening: 160 mm
- Maximum tool diameter under table: 150 mm
- Sound level: 103 dB(A)
- Sound pressure: 89.5 dB(A)
- Weight: 126 kg
- Item number (SKU): FS160SOLID-230V
The Holzmann FS200 is a table router designed for precision work in wood. The machine is equipped with a solid cast iron table that provides stability during operation, and an aluminium router fence with fine adjustment that ensures accurate results.
The router has four standard speeds and an electronic LED display that shows the current spindle speed. This makes it easier to adjust the speed for different materials and routing tasks.
The spindle can be adjusted with a handwheel, and the machine comes with a sanding drum, router hood and aluminium fence. A sliding table can be purchased as an optional accessory and retrofitted as needed.
The FS200 is designed for users who want a combination of power, precision and flexibility in a compact table router for the workshop.
- Cast iron table: Provides high stability and reduces vibrations during operation.
- LED speed display: Accurately shows the spindle speed.
- Four speeds: Allows adjustment for different routing tasks.
- Fine-adjustable aluminium fence: Ensures precise cuts and consistent results.
- Included equipment: Comes with sanding drum, router hood and aluminium fence.
Pros and cons
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Pros and cons
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed settings for different materials
- Option to retrofit sliding table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Sliding table not included as standard and must be purchased separately
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 230 V
- Table size: 690 x 480 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle: 100 mm
- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 155 kg
- Model: FS200-230V
- Manufacturer: Holzmann
The Holzstar TF 190SE is a table router constructed in grey cast iron, providing a stable and vibration-free work surface. The large milling unit can be tilted from +5° to -30°, allowing for bevelled and complex milling tasks with high accuracy.
The machine is equipped with a powerful 2.2 kW motor, and the speed can easily be changed via a multi-V-belt system. The current speed is clearly displayed with LED lights on the front of the machine, giving the user a good overview during operation.
The milling stops are made of aluminium and can be finely adjusted for precise control of the workpiece. A hold-down device ensures stable guidance, and a sliding table and chassis device can be purchased as optional accessories for additional flexibility.
With a work surface of 710 × 640 mm and a weight of 174 kg, the TF 190SE is designed to stand solidly during operation. It combines power, precision and user-friendliness in a machine suitable for both professionals and advanced hobby users.
- Solid construction: Table and milling unit in grey cast iron for high stability.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible processing.
- Easy speed change: Multi-V-belt system with LED speed display.
- Precision control: Finely adjustable aluminium stops and hold-down device.
- Large work surface: 710 × 640 mm table provides ample space for larger workpieces.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
Cons
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis device
- Suitable for precision woodwork
Cons
- The machine's weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive motor power: 2.2 kW
- Absorbed power: 2.8 kW
- Milling unit angle: -5° to +30°
- Milling spindle length: 100 mm
- Milling spindle stroke: 100 mm
- Max. tool diameter retractable: 200 mm
- Arbor diameter: 30 mm
- Speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt
- Speed display: LED on the front of the machine
- Extraction opening: 100 mm
- Work table: 710 × 640 mm
- Table height: 900 mm
- Sliding carriage length: 1200 mm
- Sliding carriage width: 700 mm
- Sliding carriage height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: 174 kg
- VPE: 1 pc
The Holzstar TF 190E / 400V is a powerful table router designed for stationary use in workshops where precision and reliability are required. It is typically used for milling profiles, grooves, and edges in wooden workpieces.
The machine is powered by a 400V motor, providing stable and efficient power transmission suitable for long-term work and machining of harder wood types. The construction is robust and ensures minimal vibration during use.
The table router is part of Holzstar's machine programme, known for solid workshop equipment for both professionals and serious hobbyists. The TF 190E model is developed with a focus on precision and user-friendliness in daily operation.
- 400V motor: Provides high and stable performance for demanding milling tasks.
- Stationary construction: Ensures precision and stability during work.
- Suitable for woodworking: Designed for milling profiles, grooves, and edges.
- Robust construction: Reduces vibrations and increases accuracy.
Pros and cons
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Pros and cons
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires 400V power supply, which limits use in standard home installations
- Relatively heavy and stationary – not intended for mobile use
Specifications
- Manufacturer: Holzstar
- Model: TF 190E
- Power supply: 400V
- Product type: Table router
- SKU: SM-5901923
Other products
The Holzmann FS200S is a stationary table router designed for precision woodworking. The machine is powered by a 400 V motor with an output of 2800 W (S1) and 3750 W (S6), providing sufficient power for both fine and rough routing.
The spindle can tilt from -5° to 30°, allowing for angled routing and more complex profiles. The table is made of solid grey cast iron, ensuring stability and reducing vibrations during operation.
The fence is made of aluminium and equipped with a hold-down system and fine adjustment, allowing the workpiece to be guided safely and precisely. The machine has four standard speeds (1800, 3000, 6000, and 9000 revolutions per minute), which can be read electronically on an LED display.
The FS200S comes with a sanding drum, router hood, aluminium fence, and roller hold-down. A roller table can be purchased as an optional accessory and retrofitted as needed.
- Tilting spindle: Can be adjusted from -5° to 30° for flexible routing.
- Cast iron table: Provides stability and reduces vibrations.
- Precise fence: With hold-down system and fine adjustment for accurate work.
- Four speeds: 1800, 3000, 6000, and 9000 rpm for different routing tasks.
- LED display: Electronically shows the current speed.
Pros and cons
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed settings with electronic readout
- The machine’s weight of around 191 kg requires a fixed placement
- Roller table is an optional accessory and not included as standard
Pros and cons
Pros
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed settings with electronic readout
Cons
- The machine’s weight of around 191 kg requires a fixed placement
- Roller table is an optional accessory and not included as standard
Pros
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed settings with electronic readout
Cons
- The machine’s weight of around 191 kg requires a fixed placement
- Roller table is an optional accessory and not included as standard
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 710 x 640 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 191 kg
- Model: FS200S-400V
- Manufacturer: Holzmann
The Holzmann FS160L 400V is a table router designed for versatile routing tasks in wood. The machine is equipped with a solid cast iron table that ensures stability during operation, as well as an aluminium sliding table measuring 1000 x 215 mm, which provides good support for the workpieces.
The router can tilt up to 60 degrees to both sides and has both mitre and folding fences, making it suitable for precision work at various angles. The compact design also makes it easy to place in smaller workshops without compromising functionality.
The machine comes with an interchangeable spindle that can be used for end milling, as well as hold-downs for both mitre and cross milling. The dynamically balanced milling spindle contributes to a smooth and precise result.
Safety is prioritised with CE-approved protection, height-adjustable safety guard and emergency stop. The combination of a powerful motor and precise adjustment options makes the FS160L 400V suitable for both professionals and experienced hobby users.
- Stable construction: Cast iron table and aluminium sliding table provide vibration-free operation.
- Flexible spindle: Interchangeable spindle for both standard and end milling.
- Adjustable angle: The table can tilt up to 60° to both sides for precision work.
- Safe operation: CE-approved protection with emergency stop and height-adjustable safety guard.
- Compact design: Space-saving construction that fits in most workshops.
Pros and cons
- Solid and vibration-free cast iron construction
- Possibility for precise angle adjustments up to 60°
- Interchangeable spindle provides flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Possibility for precise angle adjustments up to 60°
- Interchangeable spindle provides flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
Cons
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Pros
- Solid and vibration-free cast iron construction
- Possibility for precise angle adjustments up to 60°
- Interchangeable spindle provides flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
Cons
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Specifications
- Model: FS160L 400V
- Manufacturer: Holzmann
- Sliding table: 1000 x 220 mm
- Extraction port: 100 mm
- Table height: 850 mm
- Table dimensions: 600 x 400 mm
- Max. clamping height: 105 mm
- Max. tool diameter: 150 mm
- Max. tool diameter above table: 170 mm
- Spindle length: 110 mm
- Spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 170 mm
- Fence: 350 x 125 mm
- Motor power (S1/S6): 1500 W / 2100 W
- Voltage: 400 V
- Net weight: 108 kg
- Package dimensions (L x W x H): 650 x 630 x 530 mm
- Scope of delivery: Interchangeable milling cutter (ø 12 mm), mitre fence and clamp, milling guard
The Holzstar TF 190E / 230V is a table router designed for precision work in wood. It is constructed as a stationary machine that provides stability and control when routing edges, profiles, and joints.
The machine is powered by a 230V motor, making it compatible with standard electrical installations. The fixed table construction provides a solid working surface, and the routing unit can be adjusted to achieve precise results for different types of routing tasks.
The TF 190E model is part of Holzstar's range of woodworking machines, known for their robustness and user-friendliness. It is suitable for both small workshops and professional environments where precision and reliability are required.
- 230V operation: Can be connected to standard electrical installations without the need for industrial plugs.
- Stable construction: Stationary machine with fixed table for precise work.
- Adjustable routing unit: Allows precise adjustment for different routing tasks.
- Suitable for woodworking: Designed for routing edges, profiles, and joints.
Pros and cons
- Solid and stable construction
- Can be used with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
- Requires a fixed workspace and ample space in the workshop
- No information about included accessories or specific technical data on the product page
Pros and cons
Pros
- Solid and stable construction
- Can be used with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
Cons
- Requires a fixed workspace and ample space in the workshop
- No information about included accessories or specific technical data on the product page
Pros
- Solid and stable construction
- Can be used with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
Cons
- Requires a fixed workspace and ample space in the workshop
- No information about included accessories or specific technical data on the product page
Specifications
- Manufacturer: Holzstar
- Model: TF 190E / 230V
- Product type: Table router
- Power supply: 230V
- SKU: SM-5901921
The Holzmann FS200S 230V is a table router constructed with a solid cast iron table, ensuring stability and reducing vibrations during operation. The machine is equipped with a high-quality fence that includes a hold-down system and fine adjustment capability, providing precise control of the workpiece.
The spindle can be tilted from -5° to +30°, allowing for angled milling and adjustment of the work process as needed. The router offers four standard speeds, enabling the user to select the optimal speed for different materials and tool diameters.
A large handwheel makes it easy to adjust the spindle height, and the speed can be read directly on an LED display for better control. The machine can be equipped with a roller table as an optional accessory, expanding its usability for larger workpieces.
The FS200S comes with an aluminium fence and cutter guard, and its technical specifications show a powerful motor delivering up to 3750 W in S6 operation. The combination of power, precision, and solid design makes it suitable for both workshops and small-scale production.
- Cast iron table: Provides stability and reduces vibrations during milling.
- Adjustable spindle range: Tiltable from -5° to +30° for flexible tasks.
- Four milling speeds: Allows adaptation to different materials and tools.
- LED display: Clearly shows the speed for precise control.
- Powerful motor: Up to 3750 W in S6 operation ensures high performance.
Pros and cons
- Solid cast iron construction
- Precise fence with fine adjustment
- Multiple speed settings
- Option for spindle angle adjustment
- LED display for easy reading
- Roller table not included as standard
- Machine weight of 170 kg requires fixed placement
Pros and cons
Pros
- Solid cast iron construction
- Precise fence with fine adjustment
- Multiple speed settings
- Option for spindle angle adjustment
- LED display for easy reading
Cons
- Roller table not included as standard
- Machine weight of 170 kg requires fixed placement
Pros
- Solid cast iron construction
- Precise fence with fine adjustment
- Multiple speed settings
- Option for spindle angle adjustment
- LED display for easy reading
Cons
- Roller table not included as standard
- Machine weight of 170 kg requires fixed placement
Specifications
- Model: FS200S 230V
- Motor power S1/S6: 2800 / 3750 W
- Voltage: 230 V
- Extraction port: 100 mm
- Table height: 900 mm
- Table dimensions: 710 x 640 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Spindle tilt: -5° to +45°
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Net weight: 170 kg
- Package dimensions (L x W x H): 760 x 690 x 700 mm
- Scope of delivery: Aluminium fence, cutter guard
Different types of table routers
Table routers come in several variants that differ in size, construction, and area of use. The choice depends on how often you use the machine and what types of tasks you work with.
1. Stationary table routers
Stationary models are ideal for workshops where precision and power are more important than mobility. They often have powerful motors, large tables, and many adjustment options, making them suitable for professional use and larger projects.
2. Compact table routers
Compact models are lighter and take up less space but can still deliver high precision. They are well suited for hobby use or smaller workshops where space is limited. Many compact models can be mounted on workbenches as needed.
3. Combined milling and drilling machines
Some machines combine milling and drilling functions, providing extra flexibility in the workshop. They are particularly useful if you work with many different types of joints and want to save space.
4. CNC table routers
For advanced tasks, there are CNC-controlled table routers that can be programmed to perform complex patterns and repeated cuts with extreme precision. They are typically more expensive but offer great efficiency in series production and specialised work.
Different brands of table routers
The market for table routers includes a number of well-known manufacturers, each with their own strengths and areas of focus.
Bosch
Bosch offers a wide range of table routers that combine user-friendliness with high quality. Their models are known for precision, solid construction, and good safety features, making them popular among both professionals and private users.
Makita
Makita produces robust and reliable table routers with a focus on performance and ergonomics. The brand is often chosen by craftsmen who want a machine that can withstand intensive use over a long period.
Dewalt
Dewalt is known for powerful motors and precise adjustment systems. Their table routers are primarily aimed at professional users who need high precision and efficiency in their daily work.
Triton
Triton specialises in table routers with advanced adjustment options and well-thought-out safety features. Their models are popular among woodworking enthusiasts who want great control and flexibility.
Einhell
Einhell offers affordable table routers that are well suited for hobby use and lighter tasks. They are a good choice for beginners who want to explore routing without investing in expensive equipment.
Frequently asked questions
What can a table router be used for?
A table router is used to shape, profile, and hollow out wood. It can make edges, joints, grooves, and decorative profiles, making it a versatile tool in both furniture making and general woodworking.
What materials can be routed?
Table routers are primarily used for wood and MDF, but with the right router bit, they can also process plastic and light metals. However, it is important to choose the correct speed and tool for the material.
How do you maintain a table router?
Keep the table clean from dust and resin, lubricate moving parts as needed, and regularly check that the router bit is sharp and properly mounted. A clean and well-adjusted machine provides better results and a longer lifespan.
Is dust extraction necessary?
Yes, dust extraction improves both the working environment and precision. Wood dust can be harmful to health and affect visibility during work, so effective extraction is always recommended.
Can a hand router be used as a table router?
Yes, many hand routers can be mounted in a router table and thus function as table routers. However, it requires a stable table and correct mounting to achieve safe and precise operation.
Læs også:
